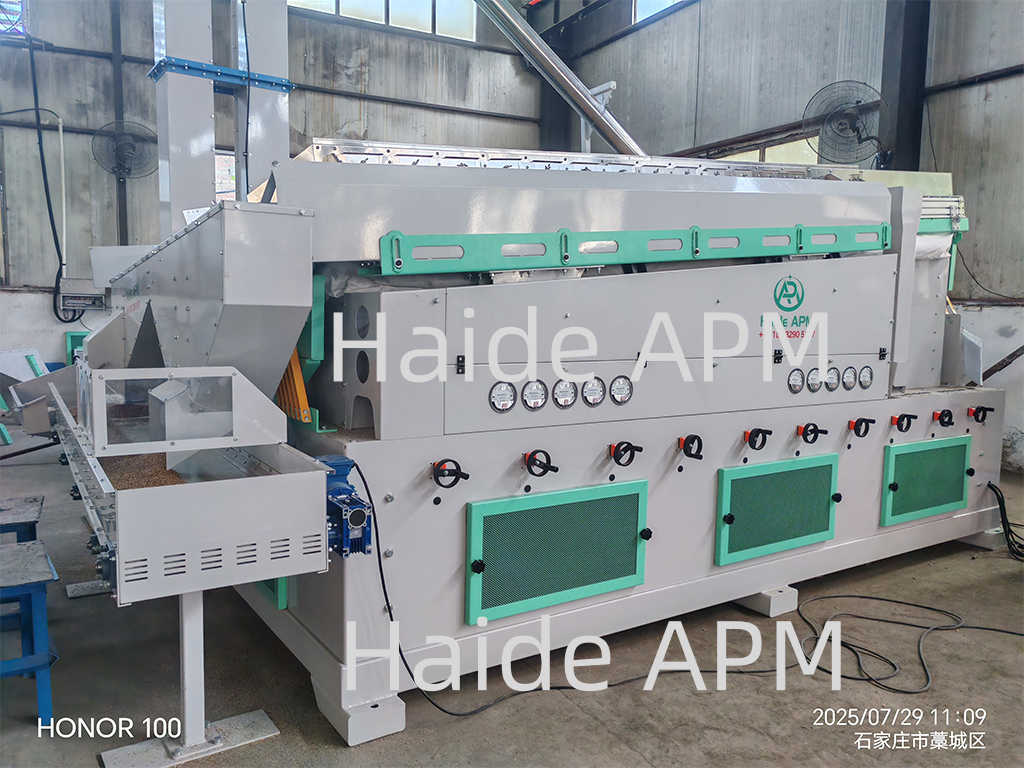

Big Capacity Gravity Separator Big gravity table, new technology, high-tech

Introduction and Function

This Gravity separator is to remove blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, seed with black powder sick and seed with shell from grain/seed.

This Blow Type Specific Gravity Separator is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material. By adjusting wind pressure, amplitude and other parameter, larger proportion material will sink down, move from bottom to up under stress of vibration friction; smaller proportion material moves from up to bottom.

If with Elevator, equip TM30, 2.2kw, 700kg, Total Overall size 5000*3250*5150mm

The capacity is based on wheat, beans is around 10-15t/h. Sesame around 5-8t/h

Advantage

1.Most components adopt bolted connection to avoid welding deformation.
2.The elevator features binocular super-low speed, non broken.
3. The gravity sorter has ten wind boxes with 4134 x1950 table, so the processing area is large.
4. The advanced processing equipment includes plasma cutting equipment, CNC turret punch and sand blasting & spraying plastics machine, which guarantee smooth plate, high dimensional accuracy as well as high punching accuracy and hole distance precision.
5. Gravity separation equipment adopts high quality bearing and high quality stainless steel table facet.

The base adopts integrated design, good stability, and accurate counterweight balance scheme, stable and perfect zoning effect.
